Smart-home Blackout Shades

The project is a fully wirelessly connected blackout shade for smart home applications. The project sponsor, Jetsons Living, is a smart home technology installation/integration company. Jetsons Living is looking to add their own smart home blackout shades solution. The blackout shades will be Wi-Fi connected, run on battery or wired power, have programmable LED lighting, controllable via remote control, and will be able to interface with Amazon Echo. This project is different than currently available smart home blackout shades in the sense that it is a custom-made system for Jetsons Living with the intention of being a lower-cost solution than the current market.

Team members: Stephen Fryer, Brian Mora, Priyank Patel, John Rossi
Sponsored by: Jetsons Living
Christian Jaen (CTO)
Email:chris.jaen@gmail.com

Meet Our Amazing Team


John Connor Rossi

Card image
Card image

Electrical Engineer

John Connor Rossi is a UCF student who intends to graduate with his BS in Electrical Engineering in May 2018. He is currently an intern at Hoverfly Technologies. He intends to further his career and knowledge in the area of consumer electronics.

Brian Mora

Card image
Card image

Electrical Engineer

Brian Mora, an electrical engineering student at the University of Central Florida who intends to graduate with his BSEE in May 2018. While at UCF, he did research in Computer Vision under the Research Experience for Undergraduates (REU).

Stephen Fryer

Card image
Card image

Computer Engineer

Stephen Fryer, a senior computer engineering student at the University of Central Florida. His areas of interests include embedded programming, computer hardware, software, and digital circuit design. He plans on pursuing a career in computer engineering that is closely related to his interests after graduation.


Priyank Patel

Card image
Card image

Computer Engineer

Priyank Patel, a senior computer engineering student at the University of Central Florida. He is currently an intern at HealthGrid. He intends to further his career and knowledge in web application development.

Document Name

Downloadable Link

Initial Project Document (Senior Design 1)

Final Document (Senior Design 1)

Initial CDR Presentation (Senior Design 2)

Conference Paper (Senior Design 2)

Final CDR Presentation Document (Senior Design 2)

Final Document (Senior Design 2)

    Motivation For This Project

  • Smart home appliances are becoming very popular

  • Voice Assistant Speakers (e.g. Amazon Echo) are becoming very popular

  • Window shades operation lends itself well to automation

  • Sponsor wants a cheaper and more feature packed alternative to current available products

Requirement Acquired for This Project

Parameter

Specification

Response Time

1 second

Solar Panel Peak Output Power

6 Watts

Motion Detection Range

> 3 meters

Average Power Consumption

10 Watts

IR Receiver distance

15 meters

Amazon Echo Skills

At least 3 skills

Shade Speed

At least 2 in/sec

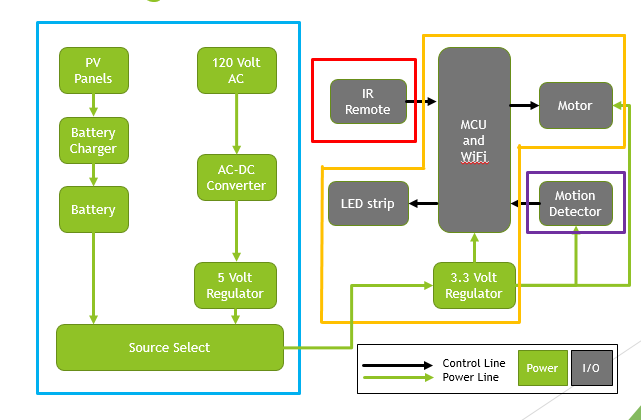

Hardware Diagram

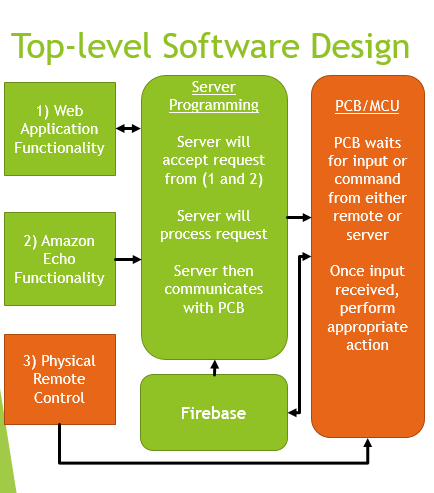

Software Diagram

Web Application Interaction with the Black out shades

Amazon Echo Interaction with the Black out shades
