What is HTS?

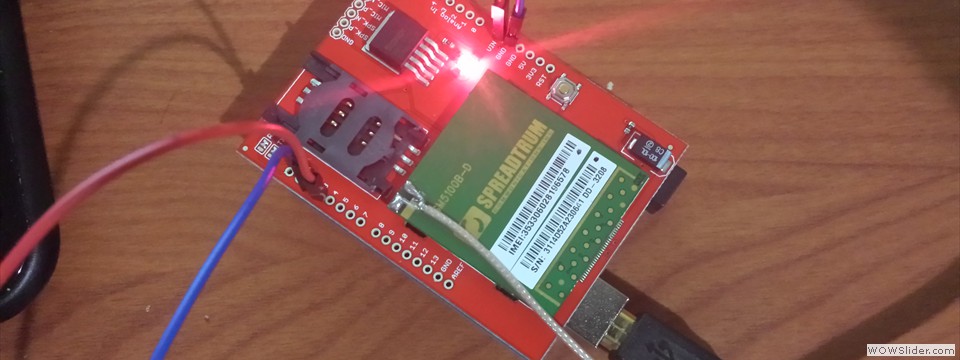

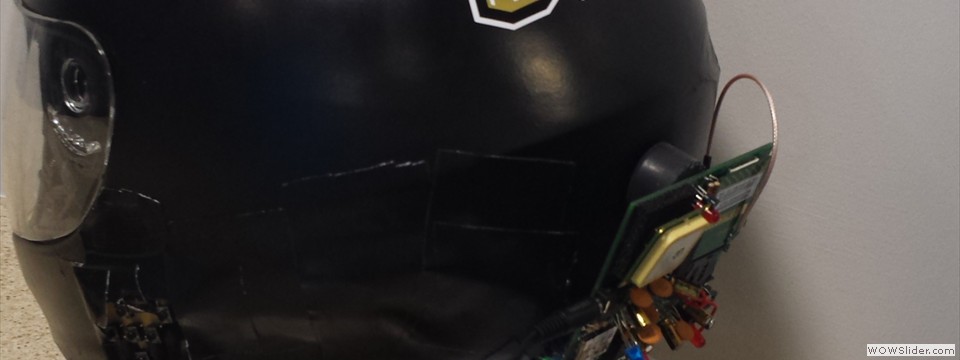

In a nutshell, the HTS is a technologically sophisticated "smart" motorcycle helmet that equips riders with a couple of nifty features not available in conventional helmets. At a cursory glance, the helmet is capable of: wireless synchronization with the user's mobile device via Bluetooth module (RN-52), Music streaming as well as voice calls all aided with user control buttons. The helmet is able to detect an accident and properly report the incident with precise latitude and longitude coordinates via SMS with the help of a triple axis accelerometer (ADXL345), a GSM module (SM5100b) and a GPS (LS20031). All of which are fed through a high density 3.7 V Li-ion battery that comes integrated with a dedicated charging IC system (MAX1555) for easy every day use and docking.

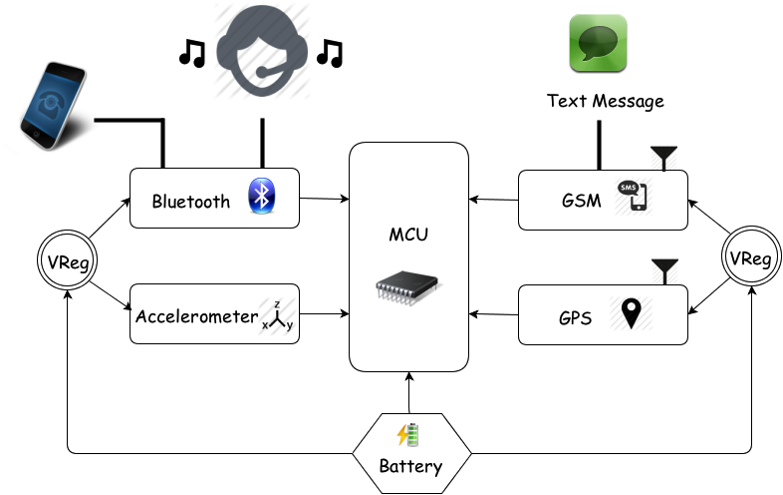

Block Diagram
