Project Summary?

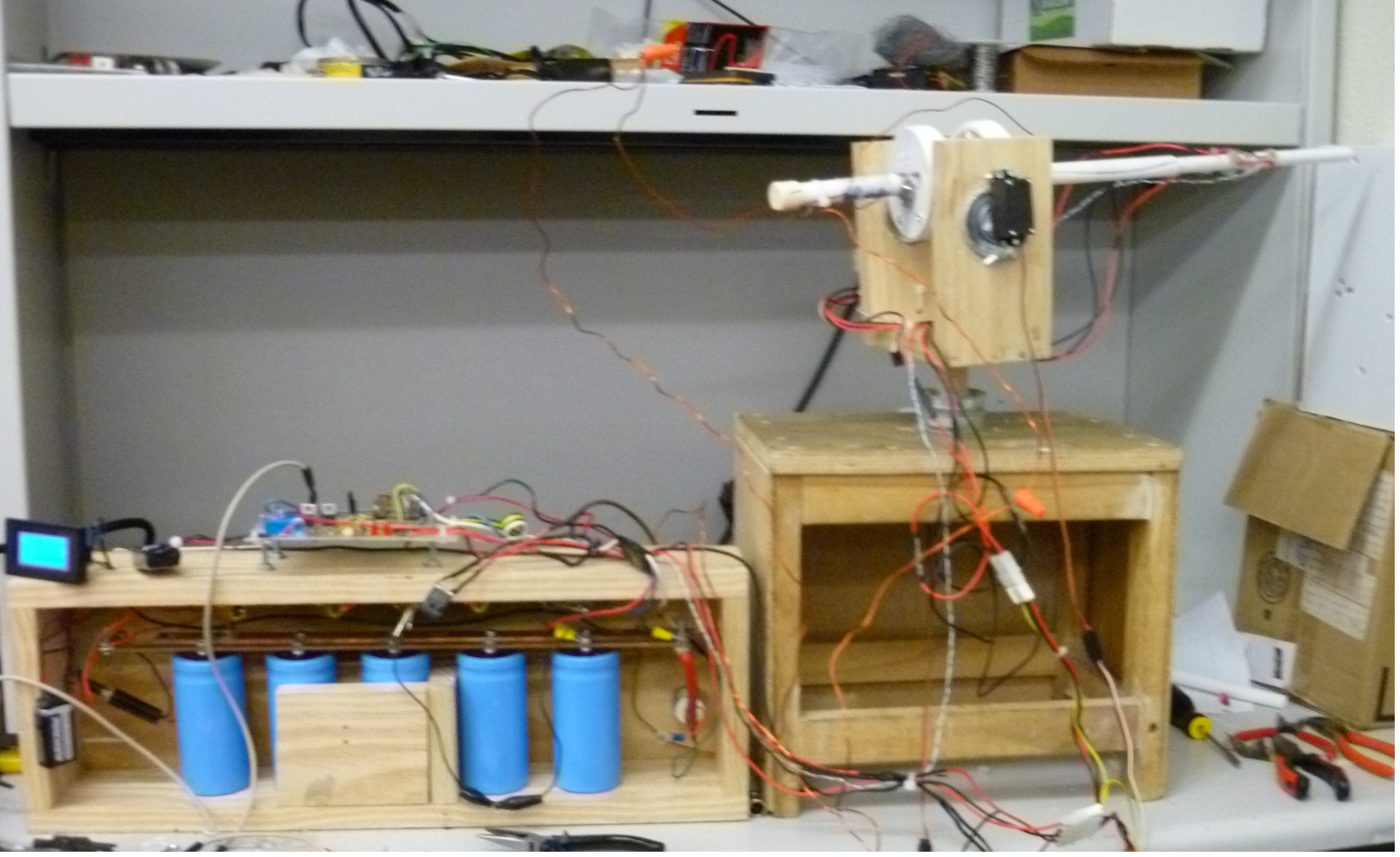

The coil gun is a system that shoots a projectile using an electromagnetic field. The power source for the gun is a standard 120 V AC outlet which is connected to the primaries of a 1:4 step up transformer.
The 480 V of AC power is converted to DC through a rectifier to charge the 5mF capacitor bank. Through a silicon-controlled rectifier the current pulse needed to generate a pulse to induce the field is obtained.
The surge current from the capacitors bank to a coil wound around a barrel experiences a large current.The current pulse usually reaches around 600-900A. That current creates a magnetic field that magnetizes a steel projectile and causes it to be pushed throughout the
end of the barrel.
|
Project Specifications:
100 ft/s Muzzle Velocity
180 Degree Horizontal Motion
120 Degree Vertical Motion
FPGA Initializes Cap Charging
FPGA Guided Firing or Manual Switch
Accepts 120 V AC Input
|
