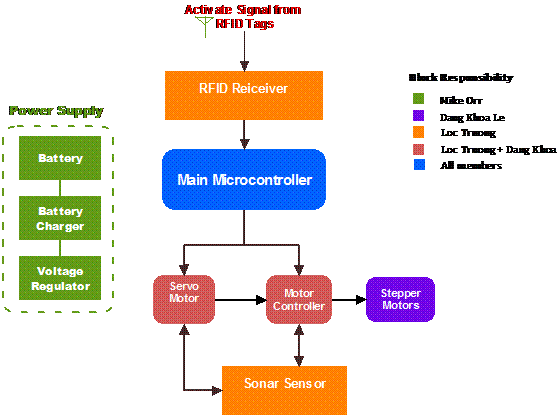

Figure 1: EEL4914 SmartWalker Functional Block Diagram

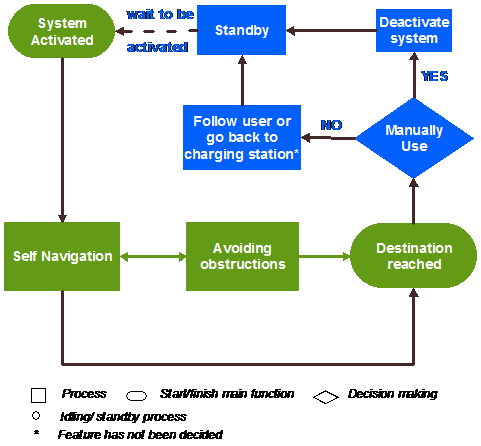

Figure 2: EEL4914 SmartWalker Functional Block Diagram

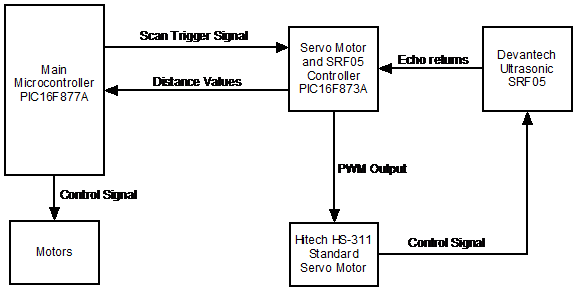

Figure 3: EEL4914 Object Avoidance System Functional Block Diagram

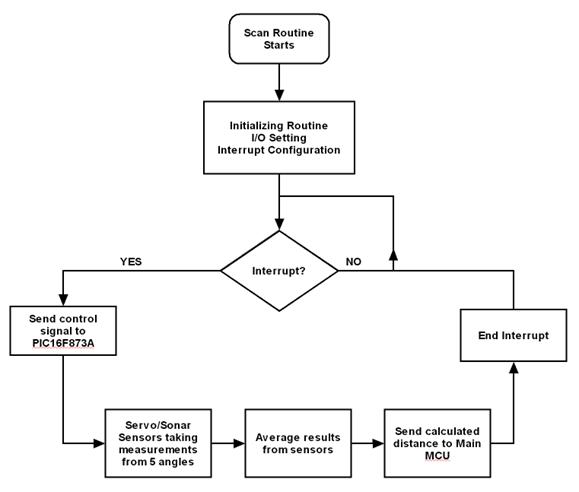

Figure 4:EEL4914 Object Avoidance System Operation Flow Chart

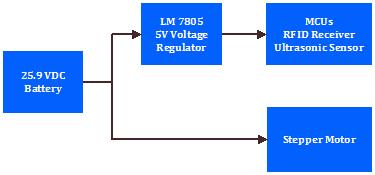

Figure 5: EEL4914 Power System Block Diagram
