LIDAR Environment Modeler

Group 10

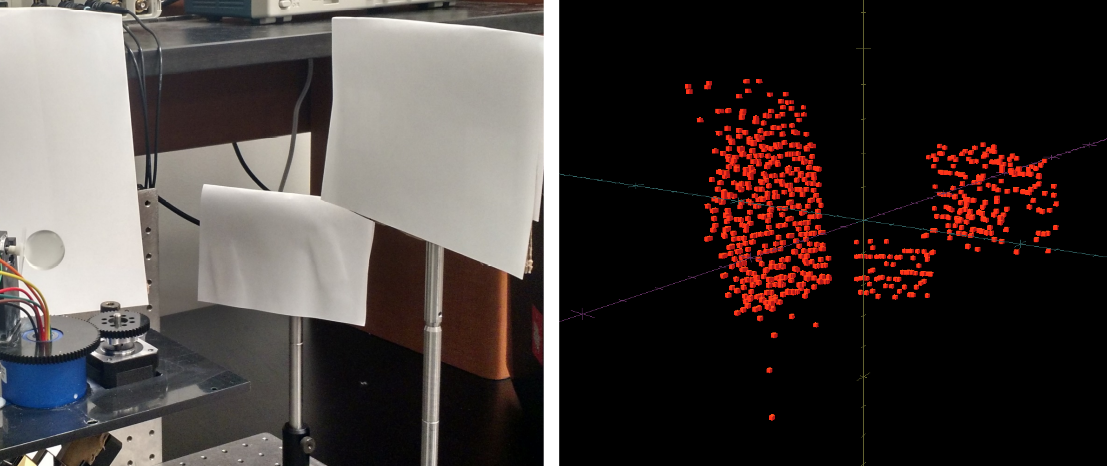

Scan example

Project Overview

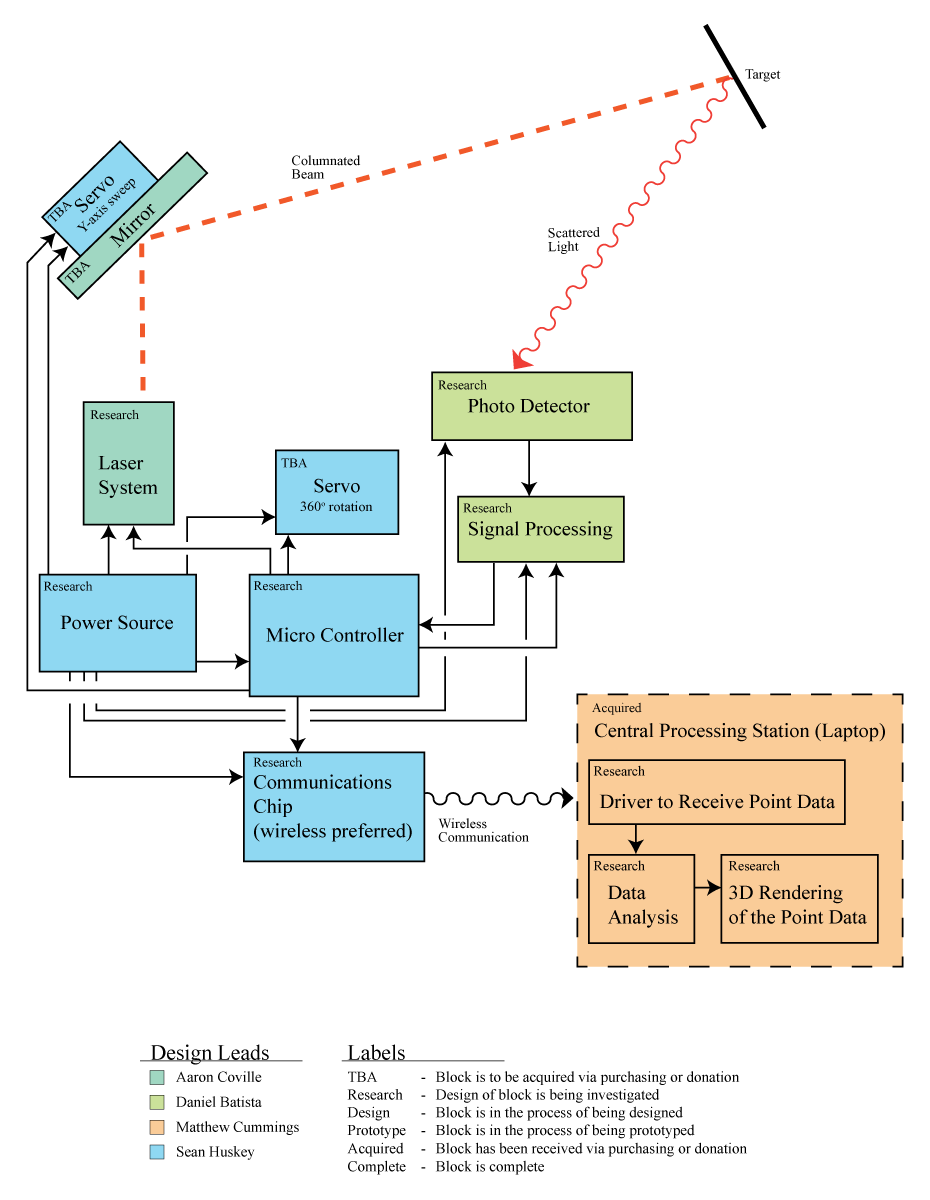

The goal of this project was to implement a LIDAR based scanning system that is capable of taking distance measurements from its environment and communicate them to a laptop application in order to render a point cloud. The device implements an open source rangefinder in conjunction with custom optics and an eyesafe, infrared laser. Control of the laser and onboard processing is done using a custom designed PCB. During a scan, the point data is streamed to a laptop via Bluetooth where it is rendered in a user-facing, graphical application.

Class Documents

Team Members

Daniel Batista

Daniel Batista - Graduating with a B.S. in Photonics Engineering and planning on continuing graduate education as well as working full time with Northrop Grumman as an Optical Engineer.

Aaron Coville

Aaron Coville - Graduating with a B.S. in Photonics Engineering and starting work with Harris after graduation as an Optical Engineer.

Matthew Cumming

Matthew Cummings - Graduating with a B.S in Computer Engineering and starting work with Lockheed Martin as a Junior Software Engineer after graduation.

Sean Huskey

Sean Huskey - Graduating with a B.S. in Computer Engineering and currently working as a Junior DevOps Engineer with HostDime Premier Global Data Centers.
